Retroguard

Surface Mounted Intumescent Fire and Smoke Seal
Tested to BS476 Pt:22

Speedy installation | No routing of door or frame
Colour co-ordinated brush | Available in white, brown, grey and woodgrain
Supplied with alcohol wipe to ensure best install

Retroguard Surface Mounted Intumescent Fire and Smoke Seal

Fitting Instructions

  1. Ensure that the surfaces that are to be adhered to are free from dust or grease.
  2. Remove tape backing from the start of the coil and start from the bottom of the door frame.
  3. Continue up the frame side removing backing as you go, cut in both top corners of frame to ensure tight fit around frame perimeter
  4. Use a sharp knife to cut the length and to cut out around the latch plate to allow door to engage.
  5. Close door and allow tape adhesive to cure off over night for best results

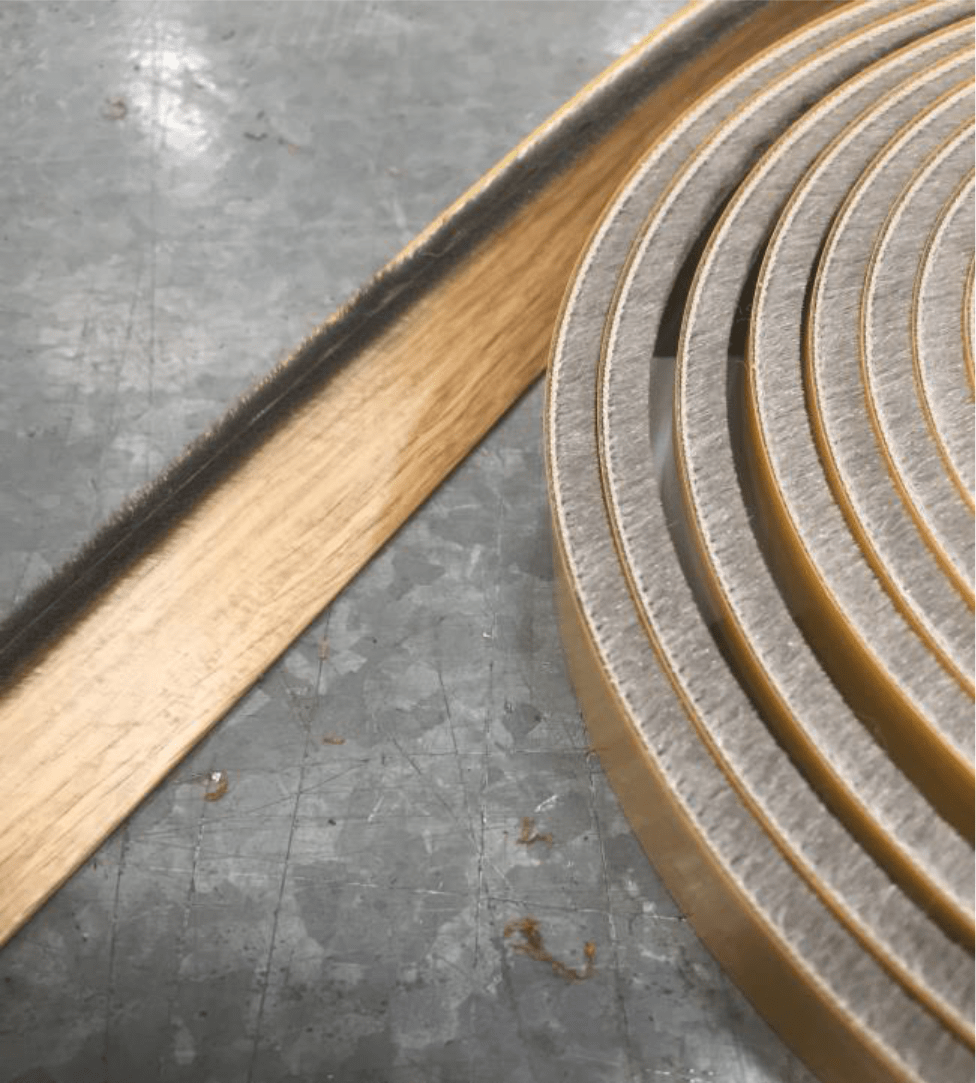

Retroguard Reel
Retroguard Technical Drawing
